• Left: Individual balance, feed and return lines. 80mm stub flange
• Right: Bund box for Feed and return lines running through a common pipe

• Left: Dual Feed and return lines. 100mm stubb flange
• Right: Suction feed, return line running through bunded pipe work on roof of tank

UNITEL Pneumatic Tank Level Gauge

This pneumatic gauge fits from 900mm - 3.0m cylindrical or rectangular tanks and comes complete with 10m or 20m of capillary tubing.
Readings can be taken up to 20m from tank using a simple 'pull-lever' operation.

PDF Leaflet / Spec Sheet {615KB}

NORMOND Pneumatic Tank Level Gauge

This calibrated pneumatic gauge fits 3m high cylindrical or rectangular tanks and comes complete with 10m of capillary tubing.
Readings can be taken up to 50m from tank using a simple 'pull-lever' operation.

PDF Leaflet / Spec Sheet {238KB}

WILLIAMS Remote Indicating Tank Contents Gauge

The instrument operates on the hydrostatic principal, where pressure due to head of liquid is sensed by the Transmitter Head and transmitted via capillary tube to the indicator giving a continuous level reading. The gauge is suitable for installation on any shape or size of storage vessel that is freely vented to atmosphere with a max head of M.

PDF Leaflet / Spec Sheet {113KB}

Cleanfill Control Anti-Spillage Valve
Fits directly to the top of the storage tank through a 2" BSP socket to prevent overfilling and spillage. The valve is fully automatic and will work with pumped or gravity fed systems.

The unit is manufactured entirely from non corrosive material and is delivered fully assembled. It can handle flow rates up to 580 litres per min.

• Maximum Flow Rate: 60M3/H - 1000 Litres/Min.
• Minimum Flow Rate: 2.4M3/H - 40 Litres/Min.
• Maximum Pressure: 8 bar - 110 PSI ( or as per local code)
• Minimum Pressure: 150 Mbar - 15 KPA - 2.17PSI
• Re-Opening / Draining Time: Less than one minute
• Easy to install: Directly under manhole cover
• Products: Diesel,Super,Unleaded
• Suitable for Direct or remote filling by pumps or by gravity
• For above ground or underground tanks

• Economical manual rewind reels for long lengths of hose.
• Choose disc rewind or removable direct crank rewind
• Supplied with spring-actuated pin lock
• Standard inlet 90 degree ball bearing swivel joint 1" male BSP threads
• Standard outlet 1" male BSP Thread
• Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser available
• Optional Rollers may be purchased
• Operate to 1000 psi (69 bar)
• Temperatures from -60F to +250F {-51C to +121C}

Manual Rewind Reels - To handle 1" through 1-3/4" ID Hose

• Economical manual rewind reels for long lengths of hose.
• Choose disc rewind or removable direct crank rewind
• Supplied with spring-actuated pin lock
• Standard inlet 90 degree swivel joint 1 1/2" male BSP threads and 2" victaulic groove.
• Standard outlet flanged riser with 1 1/2" male BSP threads
• Optional bronze or aluminium swivel joint and stainless steel hub assembly and riser available
• Optional Rollers may be purchased
• Pressures to 600 psi {41bar}
• Temperatures from -40F to +172F {-40C to +79C}

K33 & K44
The K33 and K44 mechanical flowmeters are designed for a high degree of accuracy when dispensing diesel and other compatible fluids.
The flow drives the notating disc which is connected via a gearing mechanism to register in the front cover.
Both meters are equipped with either a 3 or 4 digit resettable batch counter complete with marked tenths and a non resettable totaliser. The reset knob can be positioned on either side of the meter.

The body is made from cast aluminium and has a maximum operating pressure of 3.5.bar and can handle flow rates between 20 and 120 litres per min.

PDF Leaflet / Spec Sheet {385KB}

G.P.I Electronic Digital Meter
This meter is designed to be used as a part of diesel refuelling systems where the fuel flow is between 10 and 1000 litres per min.

The 01A31LM is a compact dynamo meter, which is placed at the nozzle to eliminate distraction when fuelling. It is highly accurate and consists of durable computer components that are powered by 2 AAA batteries that only have to be changed once per year.
The unit has been factory calibrated for use with gasoline, diesel and kerosene and has a large easy to read 4 digit LCD readout.

Available in:
OE 0056 1" x F for Diesel
OE 0058 1" x F for Water
OE 0055 1" x F Stainless Steel
OE 0054 2" x F for Diesel

K600
The K600 is a rugged digital flow meter constructed of aluminum for working pressures of up to 70.bar.

Using oval gears, the K600 family of meters are suitable for measuring fuels and lubricant's and are available in 3/4", 1" and 1.5" either with a digital display or with a pulsar for connection to an external interface. The meter has a precision better than +/- 0.5% and can cope with flow rates between 5 to 150 litres per min. These higher flow rates enable a low head loss.

PDF Leaflet / Pulse Meters {249KB}

PDF Leaflet / Electronic Flow Meters {345KB}

Double Acting Piston Pump
900 cm3/cycle. Complete with 2" connector for drum, telescoping suction tube and 3/4" thread connector on the outlet.

Suitable for use with gasoline, oil and diesel fuel.

Rotary Vane Pump
250 cm3/cycle. Complete with 2" drum adapter and suction tube. Suitable for use with oil and diesel fuel. Provided with a 3/4" threaded connection.

Double Acting Semi - Rotary Hand wing pump

This pump is suitable for handling clear & light liquids such as water, petrol, diesel and all fuels, paraffin, alcohol, light chemical solutions, edible oils etc. and is the only hand pump safe for use with hot liquids up to 80 degrees C. This pump incorporates many original technical features which make it the best of its type.

• Reinforced inlet, discharge and lugs prevent breakage even if subjected to rough treatment
• The tapered internal body - This unique technological advantage assures automatic settlement of the wings in the body and guarantees smooth efficient operation even after years of usage.
• A frost plug - Allows water to be drained if there is a risk of frost
• Thorough quality control - Each pump is individually tested to a suction lift of 7m of water and 20m of delivery head

Reusable Breakaway Couplings

• Superior Flow Rate
• Advanced Snap-Back Spring Mechanism
• Easy to Snap Back
• Minimal Downtime
• No Repair Kit Needed
• Can be used repeatedly
• Valve Protected
• UL & ULC Listed

BY-PASS 2000 DC Fuel Pumps - 12v / 24v
The smallest pump in our range is the BY-PASS 2000, which uses a patented BY-pass technology and can deliver 40 litres per min, and is available in 12v or 24v operation.
Pump features vane type pump complete on mounting plate with 0.75" female ports. Conforms to CE Standard
Also available with carry handle, on/off switch and 2m battery cable and clips.

PDF Leaflet / Spec Sheet {233KB}

40 Litres per Min BY-PASS 2000 - 12v / 24v
Pump features vane type pump complete in self contained steel box with integral on/off switch, carrying handle and 0.75" female ports. Conforms to CE Standard.
Complete with 2m cable and battery clips.

Battery Kit Versions - 12v / 24v
40 Litres per min BY-PASS 2000 pump.
Complete with carrying handle, steel box, on/off switch, 2m cable and battery clips, connectors and filter.
Self 2000 nozzle included and conforms to CE Standard.
Kit available without steel box.

Bi-Pump - 12v / 24v
Battery operated from either 12v or 24v the new Bi Pump can deliver fuel at up to 90 litres per min for 'in the field' pumping operations.
Its low consumption of only 35amps @ 12v enables it to be used on low power commercial machinery.

The unit is small and compact and fits easily on tractors, 4-wheel drive vehicles and general plant equipment.

PDF Leaflet / Spec Sheet {413KB}


BI-Pump Parts List

PDF Spec Sheet for Parts{171KB}

ST By-Pass 2000 - 12v / 24v
The ST 2000 is mounted on a steel plate with a 50 litres per min (max) pump with filter, K33 flowmeter, 4m of delivery hose and a self 2000 nozzle and support.

An automatic nozzle is available as an option.

ST By-Pass 55 - 240v
These diesel fuel transfer units are the result of careful design and represent a modern and inexpensive solution in the field of private fuel stations.
Each pump features a self priming rotary vane with a By-Pass and filter. All conform to the 'CE' standard and 'IP 55 Thermal Overload and Continuous Running using their built in heatsink & fan. Each pump has 1" female ports and is available in 240v, 110v and 3 phase. Automatic nozzles also available as an option.
The ST 55 is mounted on a steel plate with a 50 litres per min (max) pump with filter, K33 flowmeter, 4m of delivery hose and a self 2000 nozzle and support.

ST By-Pass 80 - 240v

The ST 80 is mounted on a steel plate with a 70 litres per min (max) pump with filter, K33 flowmeter, 4m of delivery hose and a self 2000 nozzle and support.
240v, 110v, 3 phase.

PDF Leaflet / Spec Sheet {411KB}

ST By-Pass 120 - 240v

The ST 120 is mounted on a steel plate with a 90 litres per min (max) pump with filter, K33 flowmeter, 4m of delivery hose and a self 2000 nozzle and support.
240v, 110v, 3 phase

SELF SERVICE Puming units

Due to constantly rising fuel prices, people in the know are always looking out for accurate and reliable fuel-dispensing systems. Market REQUIREMENTS are increasingly precise and demanding:

• I want a reliable filling station; my drivers are always in a hurry and they're not very gentle with machines.
• I'm the one to decide who is allowed to refuel, and without wasting time.
• I want a fuel management system that can control and register all fuel dispensing along the entire line of distribution.
• And I need this information on my PC, but don't ask me to put up a data-transfer line, it costs too much.
• I want my figures to balance exactly: I need a fuel-meter that maintains accuracy even at low flow-rates.
• I can't afford to run out of fuel: I need an accurate level-indicator that will alert me when stocks are running low and stop the pump when the tank is empty.

But we offer easy SOLUTIONS:

Self Service Mechanical

• sturdy and compact build, easy access for maintenance
• high flow-rates for quick refuelling
• can mount water-stop filters on the delivery side

Self Service Electronic Fuel Management

Besides having the same features of the Self Service line, these products also have the following advantages:

• integrated Fuel Management System
• access controlled by a PIN code or an electronic KEY
• extreme measurement: ±0.5%
• data-transfer to PC
• can print data and/or delivery receipts
• built-in tank-level indicator

CIM TEC CARTRIDGE FILTER

The delivery filter is a water absorbing cartridge. This provides extra protection for engines that are refuelled at the station. These filters seperate and absorb any water that may be found in the diesel fuel. The adsorption of water gradually reduces the filtering capacity and increases the head loss caused by the filter. The filter must be replacded when it becomes saturated.

Duty

• Filtering Capacity 30um
• Flow Rate 60 - 10 l/min
• Operating Pressure 3.5 bar
• Bursting Pressure 10 bar

PDF Leaflet / Spec Sheet {340KB}

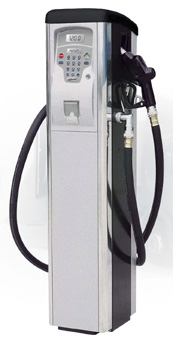

SELF SERVICE FM
Diesel fuel dispensers with multi-user meter
Organised data control with selection of authorised operating staff. P C linkup with exporting of data and issuing of ticket by local printer, tank level indicator, water absorption filter to ensure quality of dispensed product. hinged front door, (with lock) for easy access to internal component parts.

Performance specifications::

• Flow Rates from 70 to 90 l/min
• +/- 0.5% precision within the flow-rate range
• Able to control from minimum 50 to Max 120 users
• Local memory up to the last 255 preformed dispencing operations
• Possibility of entering vehicle registration numbers and kilometers
• Dispencing date and time control
• Possibility of linking to PC and exporting data at a distance of up to 1000m
• Local printer with issuing of tickets at end of dispensing operation (with date and time)

PDF Leaflet / Spec Sheet {395KB}

• Flow rates from 70 l/min.
• Pre-selected dispensing.
• Accuracy:+/-0.5% within flow rate range.
• Local memory capable of storing data for the last 200 deliveries.
• Can accept vehicle registration numbers and odometer readings.
• Records date & time of dispencing.
• Dedicated software for making printouts of dispensing details & individual user summaries.
• Magnetic keys for user identification.

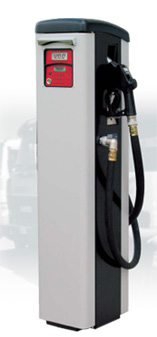

SELF SERVICE MC
Diesel fuel dispensers with multi-user meter
This dispenser is equipped with a sturdy and compact structure allowing easy access to internal parts for maintenance via hinged front door fitted with a lock. Internally there is a high capacity pump for fast filling fitted a high precision meter. Water absorption filters can be fitted inside or out to ensure the quality of the dispensed product.
The unit is able to control up to 80 users, including by magnetic key. PC linkup permits exporting performed dispensing operation data, to organize and control these according to need with the possibility of further transferring the data into a separate file.

Performance specifications::

• Able to control 80 users
• +/- 0.5% precision within the flow-rate range
• Local memory up to the last 255 performed dispensing operations
• Possibility of entering vehicle registration numbers and kilometers
• Dispencing date and time control
• Possibility of linking to PC and exporting data at a distance of up to 1000m
• Dedicated software with possibility of printing summary dispensing details for users
• Minimum tank level pump stop

PDF Leaflet / Spec Sheet {335KB}

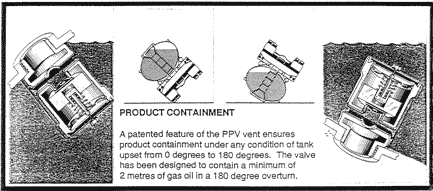

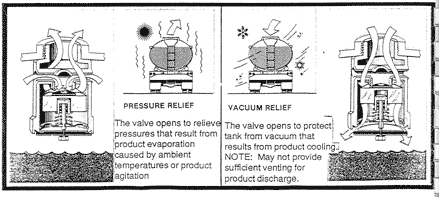

PPV Pressure Vacuum Vent

Positive protection is provided in the event of a tank upset. This patented valve is designed to ensure that no product will escape through the vent, after the initial surge, in any degree of tank upset 0 degrees to 180 degrees.

PDF Leaflet / Spec Sheet {515KB}
